AMS 17-4PH, 1.4542, X5CrNiCuNb16-4 Details

SAE AMS 5342E (2006) Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4) Used typically for parts requiring good corrosion resistance and strength up to 315°C.

Application

17-4PH is one of the most popular and most commonly used stainless chromium-nickel alloy steels with copper additive, precipitation hardened with martensitic structure. It is characterized by high corrosion resistance while maintaining high strength properties, including hardness.Steel can operate in the temperature range from -29 ℃ to 343 ℃, while retaining relatively good parameters. In addition, the materials in this grade are characterized by relatively good ductility and their corrosion resistance is comparable to 1.4301 / X5CrNi18-10.

AMS 17-4PH, 1.4542, X5CrNiCuNb16-4 Standard Download

Tags

17-4PH, 1.4542, X5CrNiCuNb16-4 Application:Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
Category Type Grade Microstructure Designations
Grades Stainless Steels 17-4PH, 1.4542, X5CrNiCuNb16-4 Precipitation-Hardening USA - AMS , SAE AMS 5342E (2006) | SAE AMS 5343E (2006) | SAE AMS 5344F (2007) | SAE AMS 5604G (2013) | SAE AMS 5622F (2013) | SAE AMS 5643/H1150 (2013) | SAE AMS 5643S (2013) | EN 10088-2 |
Chemical composition(mass fraction)(wt.%)
Elements Min.（≥） Max.（≤） Similar Remarks
C - 0.07
Si - 1.00
Mn - 1.00
Cr 15.00 17.50
Ni 3.00 5.00
Cu 3.00 5.00
Nb 0.15 1.45
Mechanical properties of grade 17-4PH, 1.4542, X5CrNiCuNb16-4
Proof strength
Rp0.2 (MPa)		 Tensile strength
Rm (MPa)		 Impact energy
KV (J)		 Elongation at fracture
A (%)		 Reduction in cross section on fracture
Z (%)		 As-Heat-Treated Condition Brinell hardness (HBW)
634 (≥) 791 (≥) 42 32 42 Solution and Aging, Annealing, Ausaging, Q+T,etc 114
Physical properties of grade 17-4PH, 1.4542, X5CrNiCuNb16-4
Property Density
kg/dm3		 Temperature T
°C/F		 Specific heat
J / kgK		 Thermal conductivity
W/mK		 Electric resistance
µΩ·cm		 Modulus of elasticity
kN/mm2		 Expansion rate
453 (≥) 578 (≥) 41 12 13 Solution and Aging, Annealing, Ausaging, Q+T,etc 433
Temp.
°C/°F		 Creep strain limit
(10000h)
(Rp1,0) N/mm2		 Creep rupture strength
(10000h)
(Rp1,0) N/mm2
363 678 528
17-4PH, 1.4542, X5CrNiCuNb16-4 Range of products
Product type Products Dimension Processes Deliver Status
Plates / Sheets Plates / Sheets 0.08-200mm(T)*W*L Forging, hot rolling and cold rolling Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting

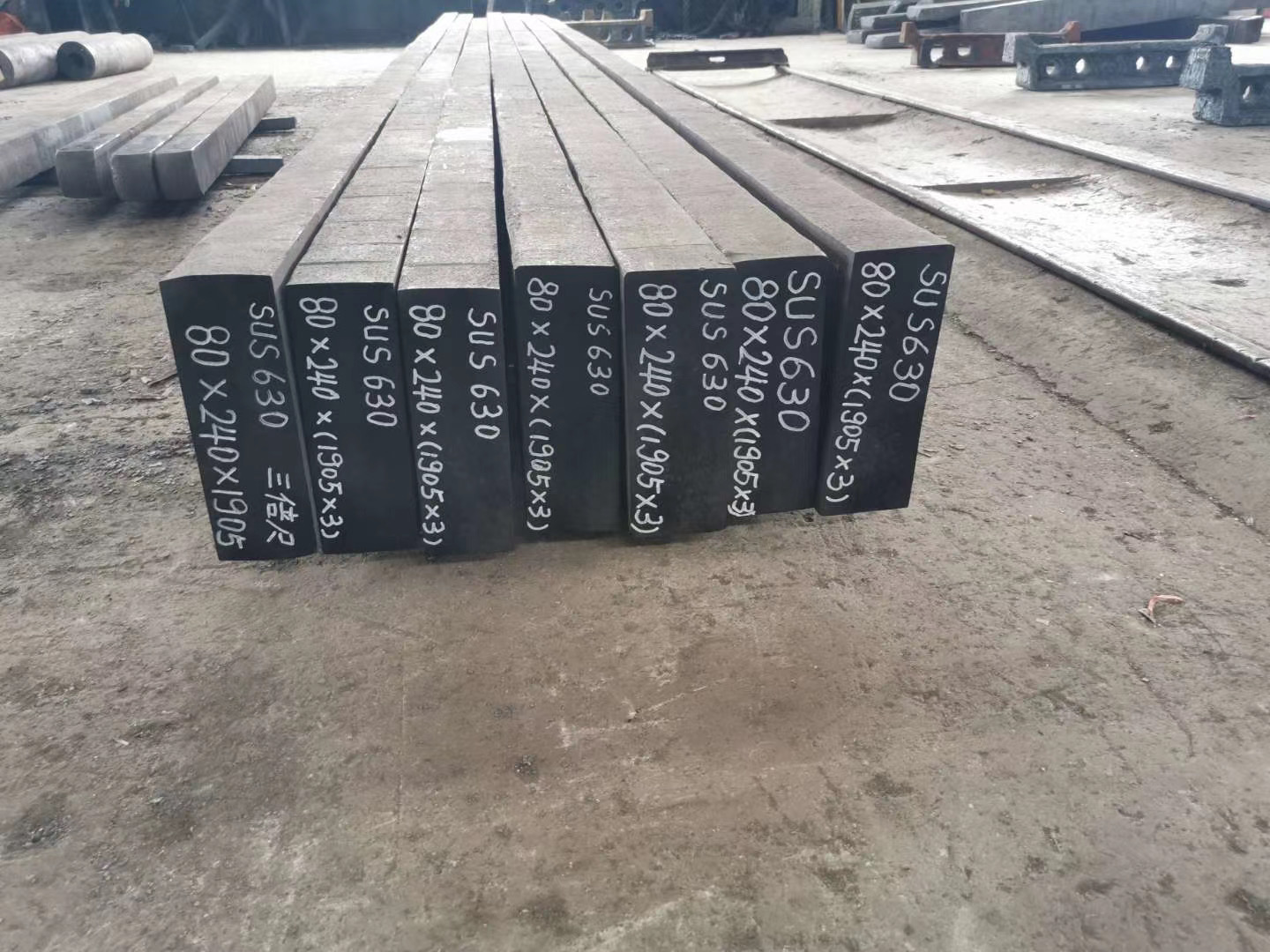

Steel Bar Round Bar, Flat Bar, Square Bar Φ8-1200mm*L Forging, hot rolling and cold rolling, Cast Black, Rough Turning, Shot Blasting,
Coil / Strip Steel Coil /Steel Strip 0.03-16.0x1200mm Cold-Rolled & Hot-Rolled Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting

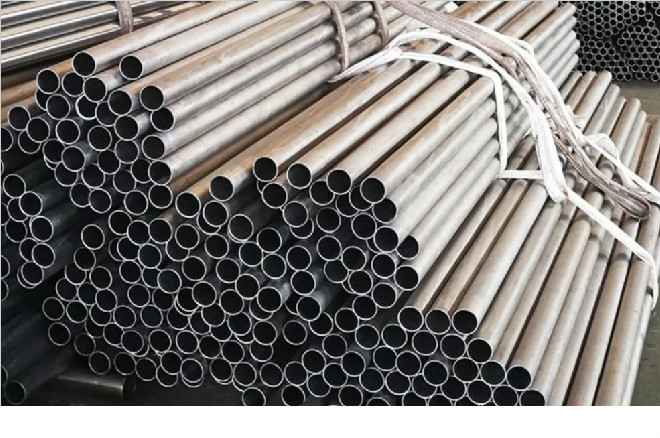

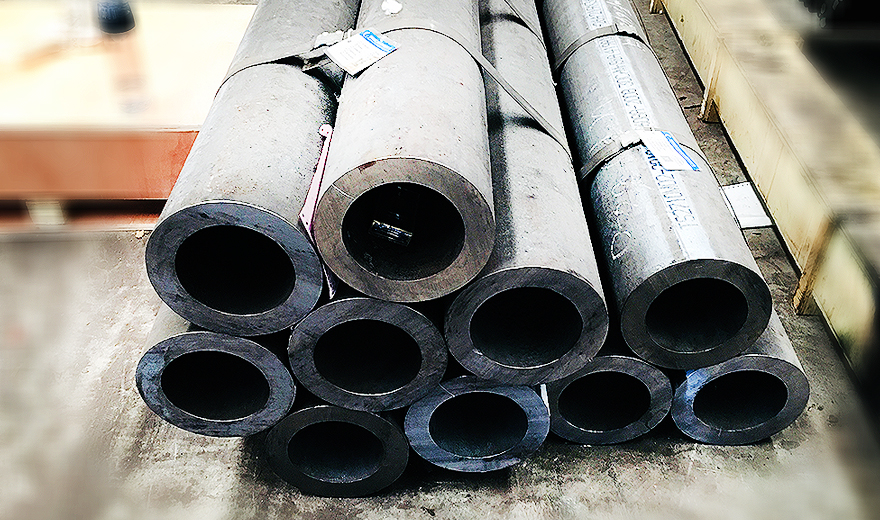

Pipes / Tubes Seamless Pipes/Tubes, Welded Pipes/Tubes OD:6-219mm x WT:0.5-20.0mm Hot extrusion, Cold Drawn, Welded Annealed, Solution and Aging, Q+T, ACID-WASHED
Cross Reference Table(Equivalent Grade)
Grade Standard Country Application
A 1028 S17400 SAE USA
Stainless Steel Bars for Compressor and Turbine Airfoils
A 564 S17400 SAE USA
Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
A 693 S17400 SAE USA
Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
A 705 S17400 SAE USA
Age-Hardening Stainless Steel Forgings
A 982 S17400 SAE USA
Steel Forgings, Stainless, for Compressor and Turbine Airfoils
A 988 S17400 SAE USA
Hot Isostatically-Pressed Stainless Steel Flanges, Fittings, Valves, and Parts for High Temperature Service
F738 Class P1-90 S17400 SAE USA
Standard Specification for Stainless Steel Metric Bolts, Screws, and Studs
F836 Class P1-90 S17400 SAE USA
Standard Specification for Style 1 Stainless Steel Metric Nuts (Metric)
S17400 AISI USA
Precipitation Hardenable Cr-Ni-Cu Stainless Steel (17-4 PH)
SA-564 S17400 AMS USA
Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
SA-693 S17400 AMS USA
Specification for Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
SA-705 S17400 AMS USA
Specification for Age-Hardening Stainless Steel Forgings
17-4PH UNS USA
Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
17-4PH ASTM USA
Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
Z6CNU17-04 AFNOR France
PH Stainless Steel
17-4PH, 1.4542, X5CrNiCuNb16-4 AMS USA
Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
X5CrNiCuNb16-4 B.S. UK
Open die steel forgings for general engineering purposes - Part 4: Stainless steels
1.4542 B.S. UK
Open die steel forgings for general engineering purposes - Part 4: Stainless steels
X5CrNiCuNb16-4 AFNOR France
Open die steel forgings for general engineering purposes - Part 4: Stainless steels
1.4542 AFNOR France
Open die steel forgings for general engineering purposes - Part 4: Stainless steels

Relevant products

17-4PH, 1.4542, X5CrNiCuNb16-4 Equivalent Grade Stock

Steel grade Dimension Shape Unit Quantity Delivery state Query
17-4PH Coil Stock 0.08*200mm Coil or Strip Kgs 1623 Cold-Rolled+Annealed Enquiry
17-4PH Round Bar Φ5-300mm*L Round Bar Kgs 46958 Hot-Rolled+Annealed+black Enquiry
17-4PH plate 8-45*1200*3000mm Plate or Sheet Tons 4.9 Hot-Rolled+Annealed+black Enquiry
