EN X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Enquiry | Print this page

EN X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Details

SAE AMS 5342E (2006) Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength Stainless precipitation hardened steel X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Used typically for parts requiring good corrosion resistance and strength up to 315°C.

Application

Stainless precipitation hardened steel X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 is one of the most popular and most commonly used stainless chromium-nickel alloy steels with copper additive, precipitation hardened with martensitic structure. It is characterized by high corrosion resistance while maintaining high strength properties, including hardness.Steel can operate in the temperature range from -29 ℃ to 343 ℃, while retaining relatively good parameters. In addition, the materials in this grade are characterized by relatively good ductility and their corrosion resistance is comparable to Stainless precipitation hardened steel X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400

EN X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Standard Download

Tags

X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Application:Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
Category Type Grade Microstructure Designations
Grades Stainless Steels X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Precipitation-Hardening European - EN , SAE AMS 5342E (2006) | SAE AMS 5343E (2006) | SAE AMS 5344F (2007) | SAE AMS 5604G (2013) | SAE AMS 5622F (2013) | SAE AMS 5643/H1150 (2013) | SAE AMS 5643S (2013) | EN 10088-2 |
Chemical composition(mass fraction)(wt.%)
Elements Min.（≥） Max.（≤） Similar Remarks
C - 0.07
Si - 1.00
Mn - 1.00
Cr 15.00 17.50
Ni 3.00 5.00
Cu 3.00 5.00
Nb 0.15 1.45
Mechanical properties of grade X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400
Proof strength
Rp0.2 (MPa)		 Tensile strength
Rm (MPa)		 Impact energy
KV (J)		 Elongation at fracture
A (%)		 Reduction in cross section on fracture
Z (%)		 As-Heat-Treated Condition Brinell hardness (HBW)
655 (≥) 825 (≥) 43 24 41 Solution and Aging, Annealing, Ausaging, Q+T,etc 241
Physical properties of grade X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400
Property Density
kg/dm3		 Temperature T
°C/F		 Specific heat
J / kgK		 Thermal conductivity
W/mK		 Electric resistance
µΩ·cm		 Modulus of elasticity
kN/mm2		 Expansion rate
963 (≥) 159 (≥) 41 22 12 Solution and Aging, Annealing, Ausaging, Q+T,etc 121
Temp.
°C/°F		 Creep strain limit
(10000h)
(Rp1,0) N/mm2		 Creep rupture strength
(10000h)
(Rp1,0) N/mm2
182 833 699
X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Range of products
Product type Products Dimension Processes Deliver Status
Plates / Sheets Plates / Sheets 0.08-200mm(T)*W*L Forging, hot rolling and cold rolling Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting

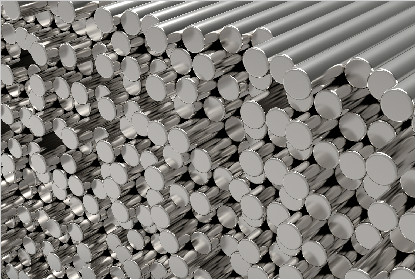

Steel Bar Round Bar, Flat Bar, Square Bar Φ8-1200mm*L Forging, hot rolling and cold rolling, Cast Black, Rough Turning, Shot Blasting,
Coil / Strip Steel Coil /Steel Strip 0.03-16.0x1200mm Cold-Rolled & Hot-Rolled Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting
Pipes / Tubes Seamless Pipes/Tubes, Welded Pipes/Tubes OD:6-219mm x WT:0.5-20.0mm Hot extrusion, Cold Drawn, Welded Annealed, Solution and Aging, Q+T, ACID-WASHED
Cross Reference Table(Equivalent Grade)
Grade Standard Country Application
X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 EN European
Steel, Corrosion-Resistant, Investment Castings 16Cr - 4.1Ni - 0.28Cb (Nb) - 3.2Cu Homogenization, Solution, and Precipitation Heat Treated (H1100) 130 ksi (896 MPa) Tensile Strength (17-4)
A 1028 S17400 SAE USA
Stainless Steel Bars for Compressor and Turbine Airfoils
A 564 S17400 SAE USA
Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
A 693 S17400 SAE USA
Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
A 705 S17400 SAE USA
Age-Hardening Stainless Steel Forgings
A 982 S17400 SAE USA
Steel Forgings, Stainless, for Compressor and Turbine Airfoils
A 988 S17400 SAE USA
Hot Isostatically-Pressed Stainless Steel Flanges, Fittings, Valves, and Parts for High Temperature Service
F738 Class P1-90 S17400 SAE USA
Standard Specification for Stainless Steel Metric Bolts, Screws, and Studs
F836 Class P1-90 S17400 SAE USA
Standard Specification for Style 1 Stainless Steel Metric Nuts (Metric)
S17400 AISI USA
Precipitation Hardenable Chromium Nickel Copper Stainless Steel
SA-564 S17400 AMS USA
Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
SA-693 S17400 AMS USA
Specification for Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
SA-705 S17400 AMS USA
Specification for Age-Hardening Stainless Steel Forgings
A 1028 S17400 SAE USA
Stainless Steel Bars for Compressor and Turbine Airfoils
A 564 S17400 SAE USA
Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
A 693 S17400 SAE USA
Precipitation-Hardening Stainless and Heat-Resisting Steel Plate, Sheet, and Strip
A 705 S17400 SAE USA
Age-Hardening Stainless Steel Forgings
A 982 S17400 SAE USA
Steel Forgings, Stainless, for Compressor and Turbine Airfoils
A 988 S17400 SAE USA
Hot Isostatically-Pressed Stainless Steel Flanges, Fittings, Valves, and Parts for High Temperature Service

Relevant products

X5CrNiCuNb17-4-4, 1.4548, AISI 630, UNS S17400 Equivalent Grade Stock

Steel grade Dimension Shape Unit Quantity Delivery state Query
17-4PH Coil Stock 0.08*200mm Coil or Strip Kgs 1623 Cold-Rolled+Annealed Enquiry
17-4PH Round Bar Φ5-300mm*L Round Bar Kgs 46958 Hot-Rolled+Annealed+black Enquiry
17-4PH plate 8-45*1200*3000mm Plate or Sheet Tons 4.9 Hot-Rolled+Annealed+black Enquiry
